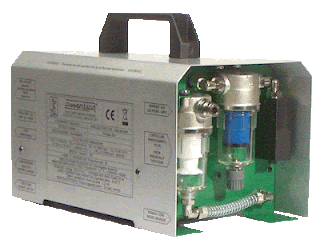

ASSEMBLAD INFRAGAS-309
Cars and motocycle exhaust gas analyser
OIML Classe 00 - BAR 97 - MID
Measure of: CO, CO2, HC, O2, RPM
Calculated: CO COrr., Lambda
Automatic calibration
Auto-zero setting
Warm-up time: 2 minutes
Windows softwrea for setup and calibration
Enabled for universal rpm counters
Enabled for OBD and e-OBD
Serial output: RS-232
Power supply: Internal batteries 12Vcc
Automatic condensate drain system
Operating tempereture range: from +5 to 40 °C.
Kit probes for motocycles
Pneumatic valve for automatic probe and filters cleaning
| Measure | Range | Resolution |
| CO | 0 ÷ 10 Vol% | 0,001 Vol% |
| CO2 | 0 ÷ 20 Vol% | 0,01 Vol% |
| HC | 0 ÷ 15000 ppm | 1 ppm |
| O2 | 0 ÷ 25 Vol% | 0,01 Vol% |
| CO Corr. | 0 ÷ 15 Vol% | 0,01 Vol% |
| Nox | 0 ÷ 5000 ppm | 1 ppm |
| Lambda | 0,5 ÷ 1,5 | 0,01 |
| RPM | 0 ÷ 9999 rpm | 1 rpm/1′ |
| Oil temperature | 0 ÷ 150 °C | 0,1 °C |
| Internal temperature | 0 ÷ 50 °C | 0,1 °C |
| Environmental pressure | 800 ÷ 1060 mbar | 1 mbar |
Approvals:
OM00620EST002c/NET2
OM00621cm/NET2
MID: SK 14 - 002 MI - 010
| Power and size | |
| Power supply | 12V DC or 220V AC |
| Weight | 5,9 Kg |
| Dimensions (LxHxP) | 290x198x168mm |
| Type of use | |
| Cars | YES |
| Motocycles | YES |
