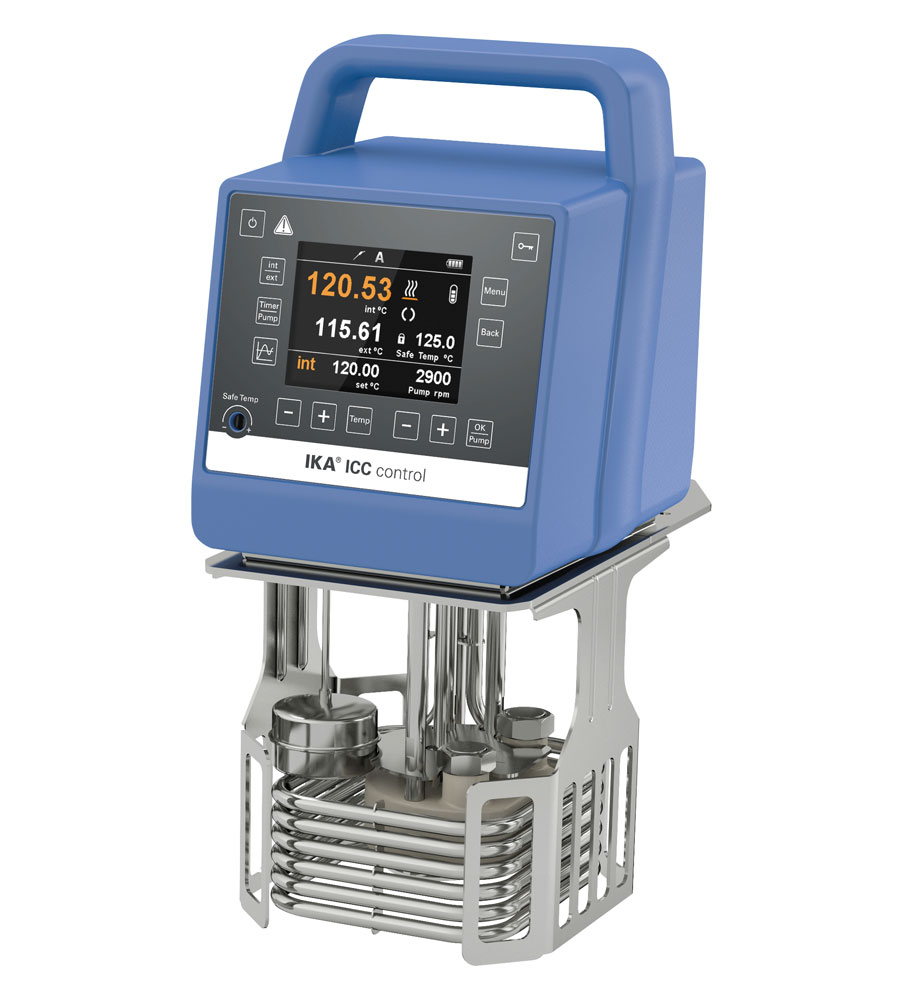

IKA ICC control
Description
Compact Immersion Thermostat ICC control for tempering of liquids up to 150°C. Suitable to use in open or covered bath vessels.
The integrated pressure/ suction pump allow ICC control to be used for internal and external applications. Just connect the optional pump set. ICC control also has an optional cooling coil that allows to work close to ambient temperatures. The program function can save and run up to 10 individual procedures with 10 steps.
The ICC control Thermostat is first in its class with and an integrated carrying handle that allows for comfortable transport and safe storage thanks to its clever stand.
The large, colour TFT screen offers intuitive controls of all process parameters.
The integrated pressure/ suction pump allow ICC control to be used for internal and external applications. Just connect the optional pump set. ICC control also has an optional cooling coil that allows to work close to ambient temperatures. The program function can save and run up to 10 individual procedures with 10 steps.
The ICC control Thermostat is first in its class with and an integrated carrying handle that allows for comfortable transport and safe storage thanks to its clever stand.
The large, colour TFT screen offers intuitive controls of all process parameters.
Technical Data
| Appliance type | Compact Immersion Circulators |
| Class designation acc. DIN 12876 | III |
| Identification according to DIN 12876 | FL |
| Heat output | 2000 W |
| Operating temperature min. | -20 °C |
| Operating temperature max. (with external heating) | 150 °C |
| Working temperature min. | room temp. +10K @1000rpm °C |
| Working temperature max. | 150 °C |
| Temperature display | yes |
| Temperature control | PT 100 |
| Working temperature sensor | PT 100 |
| Safety temperature sensor | PT1000 |
| Working temperature display | TFT |
| Safety temperature display | TFT |
| Temperature stability DIN 12876 | 0.01 ±K |
| Connection for ext. temperature sensor | PT 100 |
| Display resolution | 0.1 ±°C |
| Display for operation with ext. sensor | yes |
| Set temperature resolution | 0.1 ±K |
| Warning function optical | yes |
| Warning function acoustic | yes |
| Warning function excess temperature | yes |
| Warning function insufficient temperature | no |
| Adjustable safety circuit min. | 0 °C |
| Adjustable safety circuit max. | 160 °C |
| Sub-level protection | yes |
| Over-level protection | yes |
| Pump type | Pressure- / suction pump |
| Pump capacity adjustable | yes |
| Pump pressure max. (0 liters discharge flow) | 0.3 bar |
| Pressure pump (suction side) (0 liter flow) | 0.2 bar |
| Flow rate max. (0 bar back pressure) | 18 l/min |
| Bath depth min. | 150 mm |
| Calibration option | yes |
| Appliance fastener | clamp |
| Technical data complies with the standard | DIN 12876 |
| Permissible ON time | 100 % |
| Dimensions (W x H x D) | 145 x 340 x 200 mm |
| Weight | 3.75 kg |
| Permissible ambient temperature | 5 - 40 °C |
| Permissible relative humidity | 80 % |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | yes |
| Voltage | 230 / 115 V |
| Frequency | 50/60 Hz |
| Power input | 2100 W |
