IKA C-MAG MS 4

DESCRIPTION

Magnetic stirrer without heating. With ceramic set-up plate which offers excellent chemical resistance.

• Powerful motor for stirring quantities of up to 5 l (H2O)
• Elevated control panel for protection against leaking liquids
• Speed range: 100 - 1500 rpm

TECHNICAL DATA

Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	5 l
Motor rating output	1.5 W
Direction of rotation	left
Speed control	scale 0 - 6
Speed range	100 - 1500 rpm
Set-up plate material	ceramic
Set-up plate dimensions	100 x 100 mm
Dimensions (W x H x D)	150 x 105 x 260 mm
Weight	3 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
Voltage	230 / 120 / 100 V
Frequency	50/60 Hz
Power input	30 W

IKA lab disc white

DESCRIPTION

Ultra-flat compact magnetic stirrer, guaranteed with modern magnet coil technology. Wear-free drive with no moving parts. To ensure better mixing, the lab disc can reverse direction of rotation automatically every 30 seconds.

• High IP protection class (IP 65)
• Set-up plate and casing made from chemically resistant materials
• Slip-proof, safe stand
• Max. stirring quantity (H2O): 800 ml
• Speed range: 15 - 1500 rpm

TECHNICAL DATA

Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	0.8 l
Motor rating output	3 W
Speed range	15 - 1500 rpm
Stirring bar length max.	25 mm
Set-up plate material	polyester
Set-up plate dimensions	Ø 100 mm
Dimensions (W x H x D)	117 x 12 x 180 mm
Weight	0.3 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 65
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	5 W

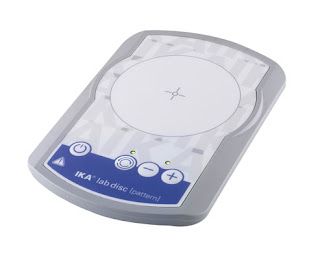

IKA lab disc pattern

DESCRIPTION

Ultra-flat compact magnetic stirrer, guaranteed with modern magnet coil technology. Wear-free drive with no moving parts. To ensure better mixing, the lab disc can reverse direction of rotation automatically every 30 seconds.

• High IP protection class (IP 65)
• Set-up plate and casing made from chemically resistant materials
• Slip-proof, safe stand
• Max. stirring quantity (H2O): 800 ml
• Speed range: 15 - 1500 rpm

TECHNICAL DATA

Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	0.8 l
Motor rating output	3 W
Speed range	15 - 1500 rpm
Stirring bar length max.	25 mm
Set-up plate material	polyester
Set-up plate dimensions	Ø 100 mm
Dimensions (W x H x D)	117 x 12 x 180 mm
Weight	0.3 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 65
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	5 W

IKA color squid wave

DESCRIPTION

Small magnetic stirrer with glass surface and different motives.

• Digital speed display (LED)
• Electronically controlled motor for more capacity
• Higher speed range from 0 - 2.500 rpm
• Max. stirring quantity 1 l
• Outstanding chemical resistance due to glass top and synthetic bottom made of TPC-ET
• Recyclable materials

TECHNICAL DATA

Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	1 l
Motor rating output	2 W
Direction of rotation	right
Speed display set-value	LED
Speed control	Turning knob
Speed range	0 - 2500 rpm
Setting accuracy speed	50 rpm
Stirring bar length max.	30 mm
Set-up plate material	glass
Set-up plate dimensions	Ø 115 mm
Automatic reverse rotation	no
Intermittend mode	no
Viscosity trend measurement	no
Break detection stirring bar	no
Timer	no
pH measurement	no
Graph function	no
Programs	no
Sensor in medium detection (Error 5)	no
Weighing function	no
Set-up plate illuminated	no
Dimensions (W x H x D)	145 x 45 x 160 mm
Weight	0.54 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
RS 232 interface	no
USB interface	no
Analog output	no
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	4 W
DC Voltage	12 V=
Current consumption	300 mA

 IKA color squid bubbles

DESCRIPTION

Small magnetic stirrer with glass surface and different motives.

• Digital speed display (LED)
• Electronically controlled motor for more capacity
• Higher speed range from 0 - 2.500 rpm
• Max. stirring quantity 1 l
• Outstanding chemical resistance due to glass top and synthetic bottom made of TPC-ET
• Recyclable materials

TECHNICAL DATA

Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	1 l
Motor rating output	2 W
Direction of rotation	right
Speed display set-value	LED
Speed control	Turning knob
Speed range	0 - 2500 rpm
Setting accuracy speed	50 rpm
Stirring bar length max.	30 mm
Set-up plate material	glass
Set-up plate dimensions	Ø 115 mm
Automatic reverse rotation	no
Intermittend mode	no
Viscosity trend measurement	no
Break detection stirring bar	no
Timer	no
pH measurement	no
Graph function	no
Programs	no
Sensor in medium detection (Error 5)	no
Weighing function	no
Set-up plate illuminated	no
Dimensions (W x H x D)	145 x 45 x 160 mm
Weight	0.54 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
RS 232 interface	no
USB interface	no
Analog output	no
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	4 W
DC Voltage	12 V=
Current consumption	300 mA

IKA color squid zebra

DESCRIPTION

Small magnetic stirrer with glass surface and different motives.

• Digital speed display (LED)
• Electronically controlled motor for more capacity
• Higher speed range from 0 - 2.500 rpm
• Max. stirring quantity 1 l
• Outstanding chemical resistance due to glass top and synthetic bottom made of TPC-ET
• Recyclable materials

TECHNICAL DATA

Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	1 l
Motor rating output	2 W
Direction of rotation	right
Speed display set-value	LED
Speed control	Turning knob
Speed range	0 - 2500 rpm
Setting accuracy speed	50 rpm
Stirring bar length max.	30 mm
Set-up plate material	glass
Set-up plate dimensions	Ø 115 mm
Automatic reverse rotation	no
Intermittend mode	no
Viscosity trend measurement	no
Break detection stirring bar	no
Timer	no
pH measurement	no
Graph function	no
Programs	no
Sensor in medium detection (Error 5)	no
Weighing function	no
Set-up plate illuminated	no
Dimensions (W x H x D)	145 x 45 x 160 mm
Weight	0.54 kg

IKA color squid white

DESCRIPTION

Small magnetic stirrer with glass surface different motives.

• Digital speed display (LED)
• Electronically controlled motor for more capacity
• Higher speed range from 0 - 2.500 rpm
• Max. stirring quantity 1 l
• Outstanding chemical resistance due to glass top and synthetic bottom made of TPC-ET
• Recyclable materials

TECHNICAL DATA

Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	1 l
Motor rating output	2 W
Direction of rotation	right
Speed display set-value	LED
Speed control	Turning knob
Speed range	0 - 2500 rpm
Setting accuracy speed	50 rpm
Stirring bar length max.	30 mm
Set-up plate material	glass
Set-up plate dimensions	Ø 115 mm
Automatic reverse rotation	no
Intermittend mode	no
Viscosity trend measurement	no
Break detection stirring bar	no
Timer	no
pH measurement	no
Graph function	no
Programs	no
Sensor in medium detection (Error 5)	no
Weighing function	no
Set-up plate illuminated	no
Dimensions (W x H x D)	145 x 45 x 160 mm
Weight	0.54 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 54
USB interface	no
RS 232 interface	no
Analog output	no
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	4 W
DC Voltage	12 V=
Current consumption	300 mA

IKA topolino mobil

DESCRIPTION

Mobile magnetic mini-stirrer for mixing quantities up to 250 ml.

• Durable, brushless motor
• Continuously adjustable speed range
• High magnetic adhesion
• Portable operation with long operating time (8-12 h)
• Short charging time (2-3 h)
• Standard replaceable AA rechargeable batteries
• Optional power mode:

a) Mains-free with standard batteries
b) With supplied mains adapter (without batteries)
c) Combined mains/battery operation (with batteries fitted)

TECHNICAL DATA

Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	0.25 l
Speed range	300 - 1800 rpm
Set-up plate material	synthetic (PP)
Protection class according to DIN EN 60529	IP 20
Voltage	100 - 240 V
Frequency	50/60 Hz
DC Voltage	9 V=
Current consumption	1000 mA

IKA topolino

DESCRIPTION

Extremely convenient magnetic mini-stirrer for mixing quantities up to 250 ml.

• Durable, brushless motor
• Infinitely variable speed range
• High magnetic adhesion
• Speed range: 300 - 1800 rpm

TECHNICAL DATA

Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	0.25 l
Motor rating output	0.8 W
Speed control	stepless
Speed range	300 - 1800 rpm
Stirring bar length max.	30 mm
Set-up plate material	synthetic (PP)
Set-up plate dimensions	Ø 80 mm
Dimensions (W x H x D)	95 x 37 x 115 mm
Weight	0.32 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
RS 232 interface	no
Analog output	no
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	10 W

IKA Mini MR standard

DESCRIPTION

Small magnetic stirerr without heating.

• For stirring quantities up to 1.000 ml (H2O)
• Infinitely variable speed from 0 - 2.500 rpm
• White set-up plate suitable for observing color reactions

TECHNICAL DATA

Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	1 l
Motor rating output	2 W
Direction of rotation	right
Speed control	Turning knob
Speed range	0 - 2500 rpm
Stirring bar length min.	20 mm
Stirring bar length max.	40 mm
Set-up plate material	polyester
Set-up plate dimensions	115 x 115 mm
Automatic reverse rotation	no
Intermittend mode	no
Viscosity trend measurement	no
Break detection stirring bar	no
Timer	no
pH measurement	no
Graph function	no
Programs	no
Sensor in medium detection (Error 5)	no
Weighing function	no
Set-up plate illuminated	no
Dimensions (W x H x D)	115 x 37 x 129 mm
Weight	0.25 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 42
USB interface	no
RS 232 interface	no
Analog output	no
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	3 W
DC Voltage	12 V=
Current consumption	300 mA

IKA RO 15

DESCRIPTION

15-position digital magnetic stirrer without heating, designed for synchronous stirring. The magnetic coil technology provides noiseless and consistent stirring on all positions. Speed remains constant, even when load changes. The closed and compact design allows easy cleaning and protects the equipment against the penetration of liquids. Additionally, a removable transparent anti-slip mat is included.

• Adjustable reverse operation
• Wear free magnetic coils
• Error code display
• Easy operation with touch keypad
• Suitable for continuous operation
• Speed range: 0 - 1200 rpm

TECHNICAL DATA

Number of stirring positions	15
Stirring position distance	90 mm
Speed deviation of individual stirring positions	0 %
Speed control	10 RPM Steps
Speed range	0 - 1200 rpm
Stirring bar length min.	25 mm
Stirring bar length max.	30 mm
Set-up plate material	stainless steel 1.4301
Set-up plate dimensions	280 x 470 mm
Dimensions (W x H x D)	280 x 60 x 570 mm
Weight	7 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 40
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	40 W
DC Voltage	24 V=
Current consumption	1500 mA

IKA RO 10

DESCRIPTION

10-position digital magnetic stirrer without heating, designed for synchronous stirring. The magnetic coil technology provides noiseless and consistent stirring on all positions. Speed remains constant, even when load changes. The closed and compact design allows easy cleaning and protects the equipment against the penetration of liquids. Additionally, a removable transparent anti-slip mat is included.

• Adjustable reverse operation
• Wear free magnetic coils
• Error code display
• Easy operation with touch keypad
• Suitable for continuous operation
• Speed range: 0 - 1200 rpm

TECHNICAL DATA

Number of stirring positions	10
Stirring position distance	90 mm
Speed deviation of individual stirring positions	0 %
Speed control	10 RPM Steps
Speed range	0 - 1200 rpm
Stirring bar length min.	25 mm
Stirring bar length max.	30 mm
Set-up plate material	stainless steel 1.4301
Set-up plate dimensions	190 x 470 mm
Dimensions (W x H x D)	190 x 60 x 570 mm
Weight	5 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 40
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	25 W
DC Voltage	24 V=
Current consumption	1000 mA

IKA RO 5

IKA RO 5

DESCRIPTION

5-position digital magnetic stirrer without heating, designed for synchronous stirring. The magnetic coil technology provides noiseless and consistent stirring on all positions. Speed remains constant, even when load changes. The closed and compact design allows easy cleaning and protects the equipment against the penetration of liquids. Additionally, a removable transparent anti-slip mat is included.

• Adjustable reverse operation
• Wear free magnetic coils
• Error code display
• Easy operation with touch keypad
• Suitable for continuous operation
• Speed range: 0 - 1200 rpm

TECHNICAL DATA

Number of stirring positions	5
Stirring position distance	90 mm
Speed deviation of individual stirring positions	0 %
Speed control	10 RPM Steps
Speed range	0 - 1200 rpm
Stirring bar length min.	25 mm
Stirring bar length max.	30 mm
Set-up plate material	stainless steel 1.4301
Set-up plate dimensions	120 x 470 mm
Dimensions (W x H x D)	120 x 60 x 570 mm
Weight	3 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 40
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	13 W
DC Voltage	24 V=
Current consumption	500 mA

IKA RT 15

DESCRIPTION

15-position digital magnetic hotplate stirrer, designed for synchronous heating and stirring. The magnetic
coil technology provides noiseless and consistent stirring on all positions. The surface temperature is infinitely adjustable up to 120 °C, producing a maximum medium temperature of 70 °C (depending on the used vessel). Speed remains constant, even when load changes.

• Homogeneous temperature distribution across the heating plate
• Adjustable reverse operation
• Eco-mode for a low self-warming of the surface
• Wear free magnetic coils
• Error code display
• Easy operation with touch keypad
• Suitable for continuous operation
• Speed range: 0 - 1000 rpm

TECHNICAL DATA

Number of stirring positions	15
Stirring position distance	90 mm
Speed deviation of individual stirring positions	0 %
Speed control	10 RPM Steps
Speed range	0 - 1000 rpm
Stirring bar length min.	25 mm
Stirring bar length max.	30 mm
Heat output	580 W
Heating temperature range	Room temp. - 120 °C
Heat control	LED
Heating rate heating plate	3 K/min
Adjustable safety circuit min.	50 °C
Adjustable safety circuit max.	150 °C
Set-up plate material	Aluminium alloy
Set-up plate dimensions	270 x 495 mm
Dimensions (W x H x D)	280 x 60 x 610 mm
Weight	10.5 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 40
Voltage	230 / 115 / 100 V
Frequency	50/60 Hz
Power input	620 W

IKA RT 10

IKA RT 10

DESCRIPTION

10-position digital magnetic hotplate stirrer, designed for synchronous heating and stirring. The magnetic
coil technology provides noiseless and consistent stirring on all positions. The surface temperature is infinitely adjustable up to 120 °C, producing a maximum medium temperature of 70 °C (depending on the used vessel). Speed remains constant, even when load changes.

• Homogeneous temperature distribution across the heating plate
• Adjustable reverse operation
• Eco-mode for a low self-warming of the surface
• Wear free magnetic coils
• Error code display
• Easy operation with touch keypad
• Suitable for continuous operation
• Speed range: 0 - 1000 rpm

TECHNICAL DATA

Number of stirring positions	10
Stirring position distance	90 mm
Speed deviation of individual stirring positions	0 %
Speed control	10 RPM Steps
Speed range	0 - 1000 rpm
Stirring bar length min.	25 mm
Stirring bar length max.	30 mm
Heat output	375 W
Heating temperature range	Room temp. - 120 °C
Heat control	LED
Heating rate heating plate	3 K/min
Adjustable safety circuit min.	50 °C
Adjustable safety circuit max.	150 °C
Set-up plate material	Aluminium alloy
Set-up plate dimensions	180 x 495 mm
Dimensions (W x H x D)	190 x 60 x 610 mm
Weight	7.5 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 40
Voltage	230 / 115 / 100 V
Frequency	50/60 Hz
Power input	410 W

IKA RT 5

DESCRIPTION

5-position digital magnetic hotplate stirrer, designed for synchronous heating and stirring. The magnetic
coil technology provides noiseless and consistent stirring on all positions. The surface temperature is infinitely adjustable up to 120 °C, producing a maximum medium temperature of 70 °C (depending on the used vessel). Speed remains constant, even when load changes.

• Homogeneous temperature distribution across the heating plate
• Adjustable reverse operation
• Eco-mode for a low self-warming of the surface
• Wear free magnetic coils
• Error code display
• Easy operation with touch keypad
• Suitable for continuous operation
• Speed range: 0 - 1000 rpm

TECHNICAL DATA

Number of stirring positions	5
Stirring position distance	90 mm
Speed deviation of individual stirring positions	0 %
Speed control	10 RPM Steps
Speed range	0 - 1000 rpm
Stirring bar length min.	25 mm
Stirring bar length max.	30 mm
Heat output	175 W
Heating temperature range	Room temp. - 120 °C
Heat control	LED
Heating rate heating plate	3 K/min
Adjustable safety circuit min.	50 °C
Adjustable safety circuit max.	150 °C
Set-up plate material	Aluminium alloy
Set-up plate dimensions	110 x 495 mm
Dimensions (W x H x D)	120 x 60 x 610 mm
Weight	4 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 40
Voltage	230 / 115 / 100 V
Frequency	50/60 Hz
Power input	200 W

IKA RH basic 2

DESCRIPTION

Economic magnetic stirrer with stainless steel heating plate.

• Fixed safety circuit 400 °C
• Soft-start stirring motor

Stirring quantity (H2O): 10 l
Speed range: 100 – 2.000 rpm
Heat output: 400 W
Temperature range: RT – 320 °C

TECHNICAL DATA

Number of stirring positions	1
Stirring quantity max. per stirring position (H2O)	10 l
Motor rating output	2 W
Speed control	scale 0 - 6
Speed range	100 - 2000 rpm
Heat output	400 W
Heating temperature range	Room temp. - 320 °C
Heat control	scale 1 - 6
Fixed safety circuit	400 °C
Set-up plate material	stainless steel 1.4301
Set-up plate dimensions	Ø 125 mm
Dimensions (W x H x D)	168 x 105 x 220 mm
Weight	2.4 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
Voltage	220 - 240 / 115 / 100 V
Frequency	50/60 Hz
Power input	415 W
